R71MD3

Maximum Capacity	6 lb (3 kg)
Readability	0.0001 lb (0.05 g)
Readability (Certified)	0.001 lb (0.5 g)
Item Number:	30070289

Request a Quote ADD TO QUOTE LIST

View All Ranger™ 7000 Models

Overview
Specs
Accessories
Documents

Overview

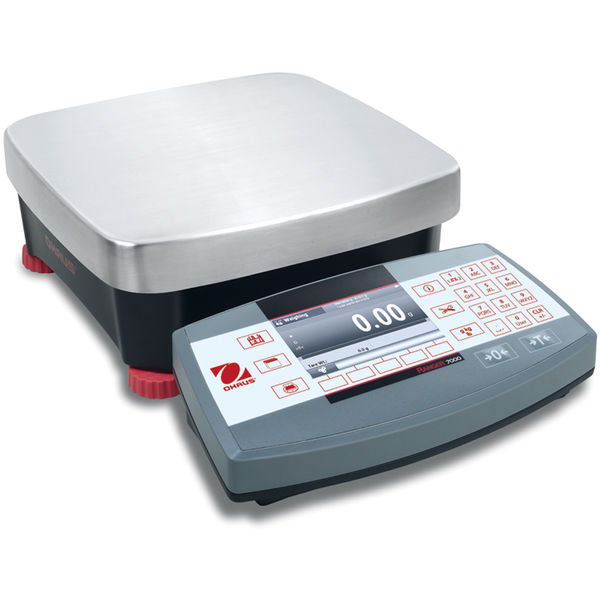

For Ranger 7000, there is one resounding theme: it offers the best of every ingenious feature that make OHAUS industrial products the right tools for your toughest weighing jobs. Ranger 7000 boasts the highest resolution, largest display, most application modes and connectivity options, as well as the largest memory library of any industrial bench scale in the OHAUS portfolio.

Applications

Weighing, Parts Counting with Auto Optimization, Percent Weighing, Advanced Checkweighing, Animal/Dynamic Weighing, Display Hold, Filling, Formulation, Differential Weighing, Density Determination, Sieve Analysis

Display

4.3" (109 mm) Full-color WQVGA graphic display with user-controlled brightness

Operation

AC power (included) or rechargeable battery (accessory sold separately)

Communication

Easy access communication port including standard USB and RS232 (included) and an optional third port of RS232 or Ethernet (accessories sold separately). GLP/GMP Data Output with Real Time Clock. Data Transfer Function.

Construction

Modular design, die-cast housing, removable stainless steel platform, integral weigh below hook, menu lock switch, level indicator

Design Features

Checkweighing lights with selectable operation and audible signal settings, several selectable operating languages, selectable environmental and autoprint settings, stability indicator, overload/underload indicators, selectable brightness settings, auto-dim, auto-sleep, auto tare, chain tare

Specifications

Maximum Capacity	6 lb (3 kg)
Readability	0.0001 lb (0.05 g)
Readability (Certified)	0.001 lb (0.5 g)
Platform Size	11 in x 11 in (280 mm x 280 mm)
Battery Life	12 Hours with Rechargeable Battery
Second Scale Input	Yes
Communication	2nd RS232 (Available as an Accessory);Ethernet (Available as an Accessory);USB (Included);RS232 (Included)
Dimensions	16.5 in x 4.5 in x 11 in (420 mm x 114 mm x 280 mm) (LxHxW)
Display	4.3’’/10.9cm TFT Graphic LCD
Internal Calibration	Not Applicable
In-Use Cover	Included
Legal for Trade	NTEP Certified;Measurement Canada Approved
Linearity ±	0.1 g
Net Weight	15 lb (6.8 kg)
Outputs	2 In/4 Out digital I/O
Platform Construction	Stainless Steel
Power	Rechargeable Battery (Not Included);AC Power (Included)
Protection Rating	IP54
Tare Range	To capacity by subtraction
Transportation Case	Not Applicable
Units of Measurement	Gram;Kilogram;Pound;Ounce;Custom;Pound:Ounce
Working Environment	14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing)
